L-19 Bird Dog Kit, 40"
L-19 Bird Dog Kit, 40"
Introduction

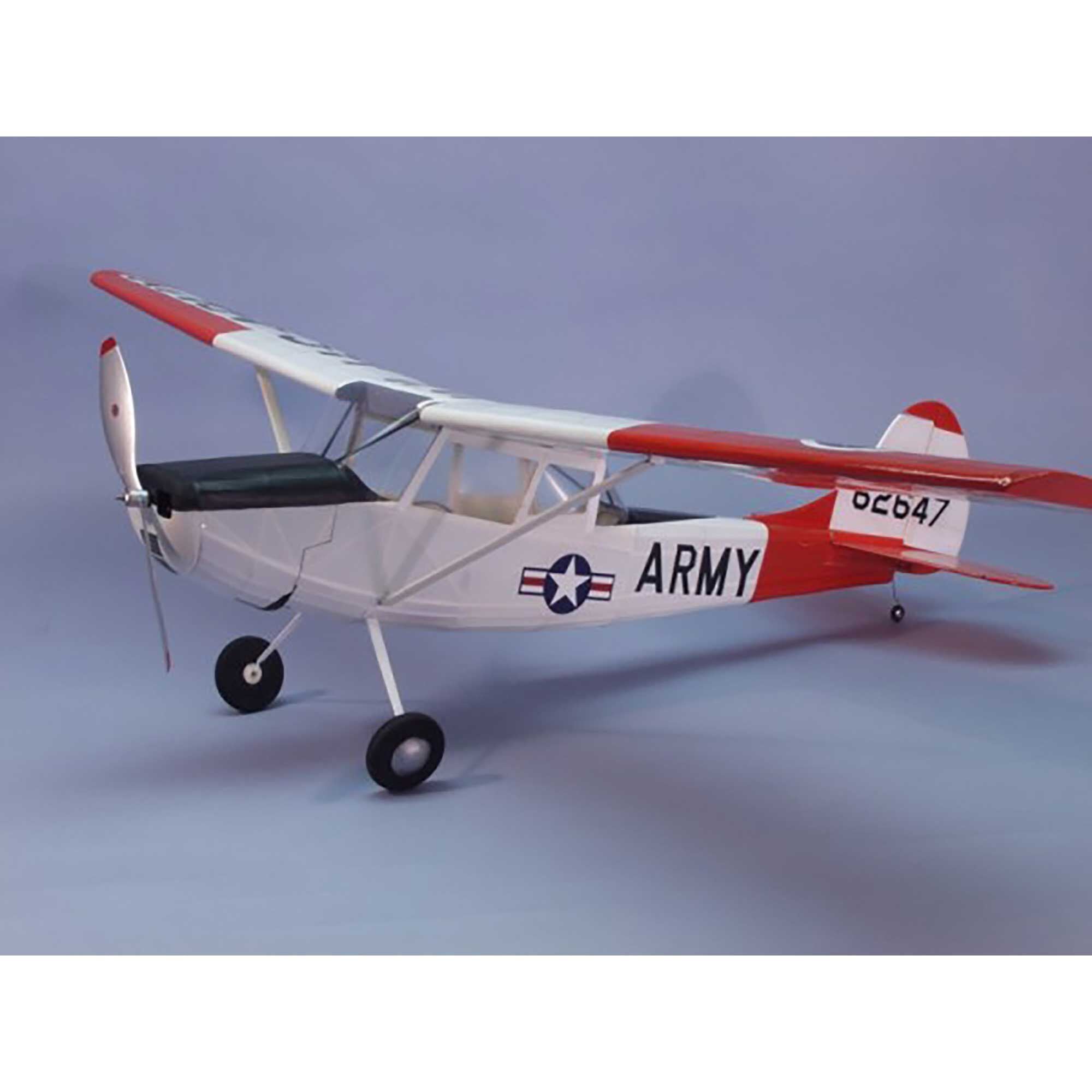

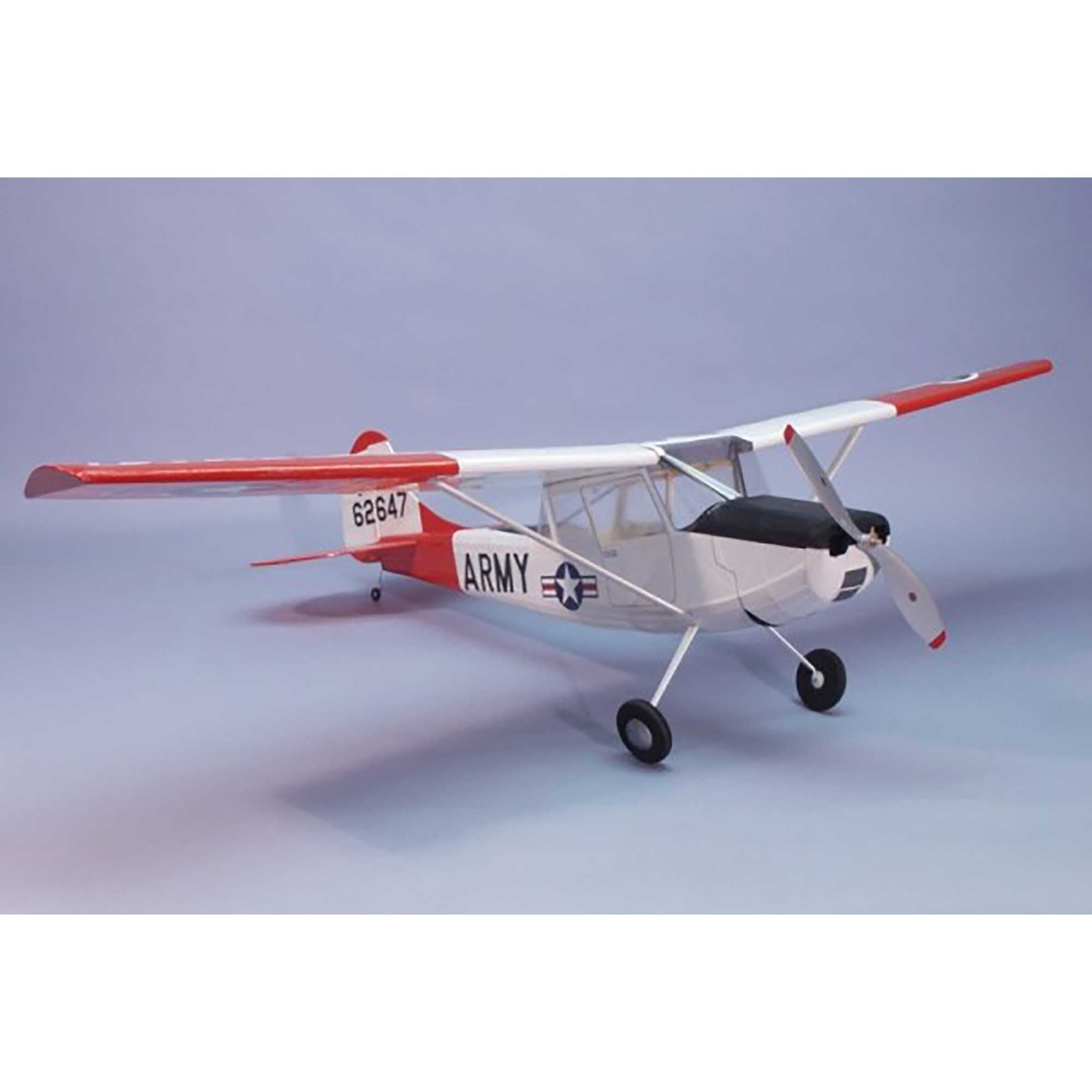

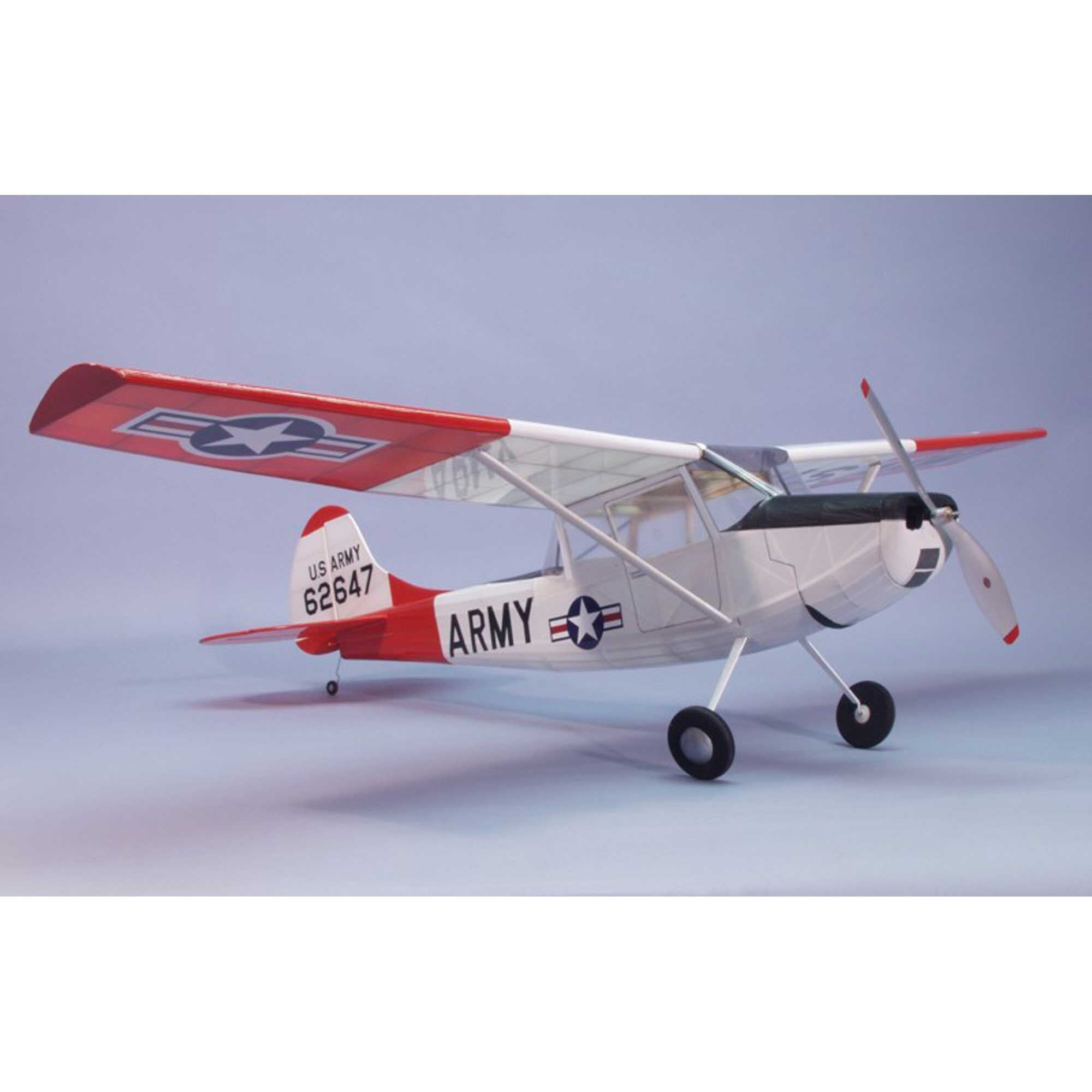

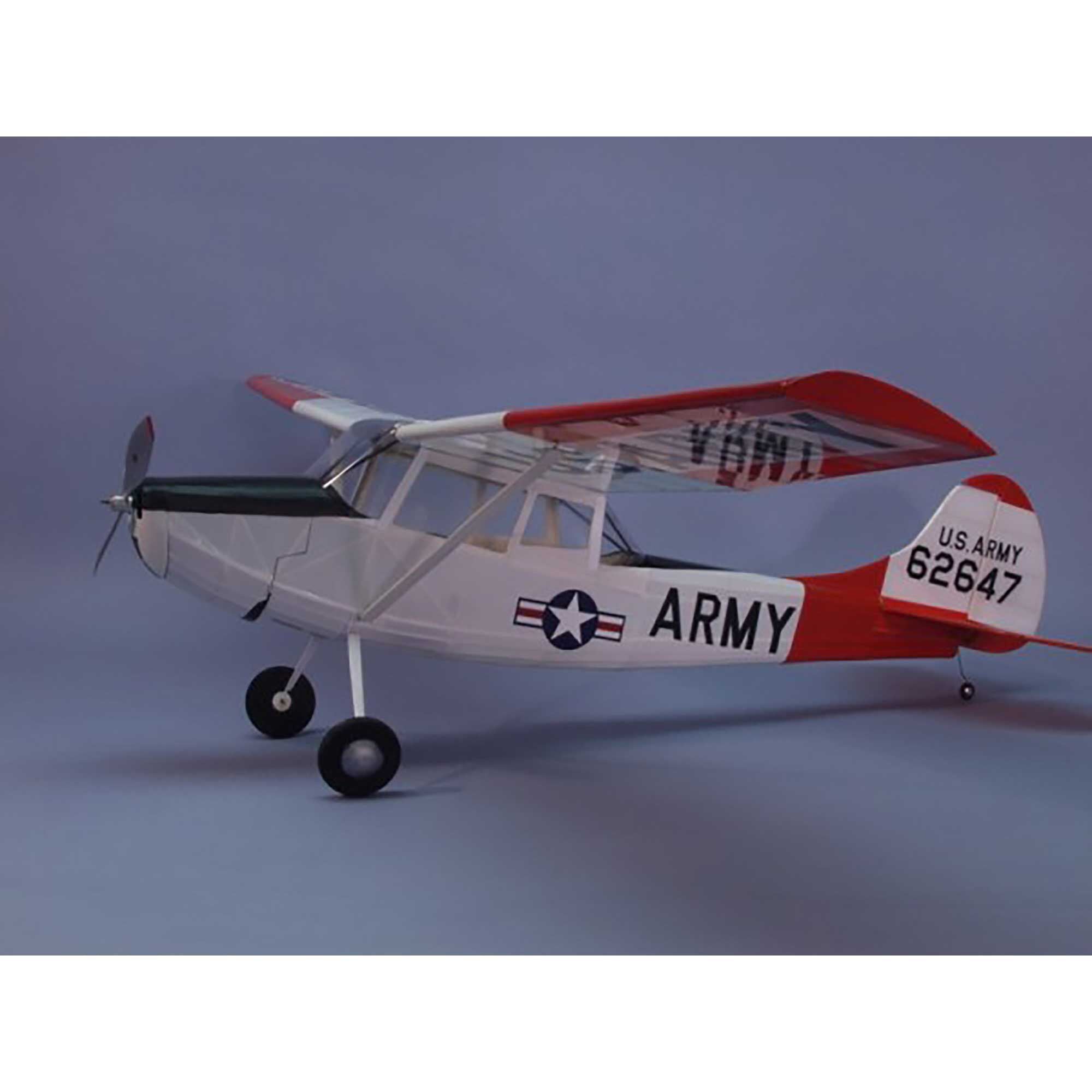

A beautifully laser cut model of the popular L-19 Bird Dog. Engineered specifically for electric R/C by designer Pat Tritle to use off the shelf flying packages.
Features
- Laser cut parts
- Hand-selected balsa
- Full size plans
- Step-by-step instructions
- Vacuum-molded parts
- Lightweight colored tissue
Required for RC
- Electric Motor: GWS A or MPI EPU-6 drive unit
- Radio: 3-channel with micro size receiver
- Servos: Two micro size for rudder and elevator
- Electronic Speed Control: 5A with BEC
- Battery: 7.4V 700mAh Lithium Polymer
Control Throws
- Elevator: up and down 3/4" (19mm)
- Rudder: left and right 7/8" (22mm)
- Airfoil: Flat bottom
