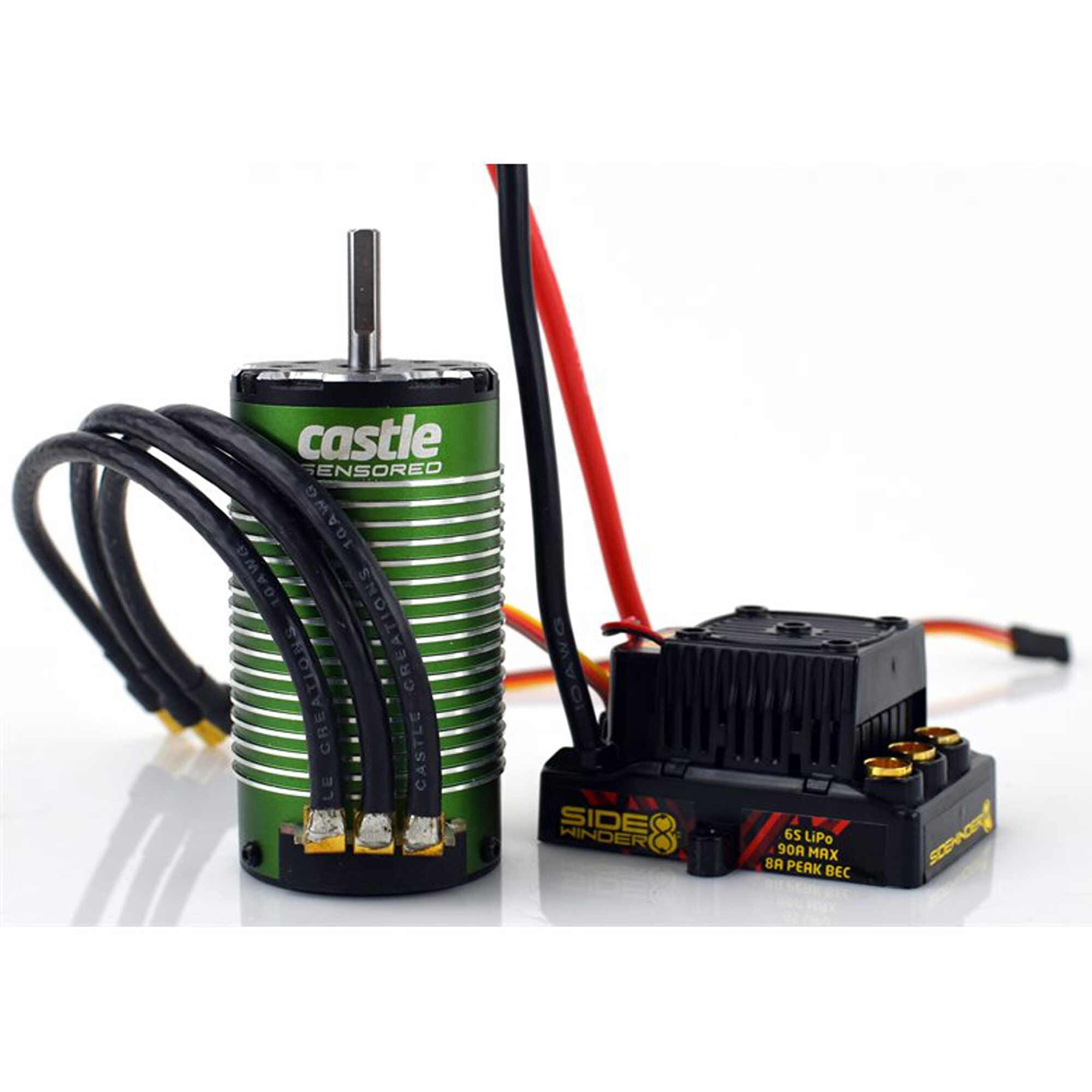

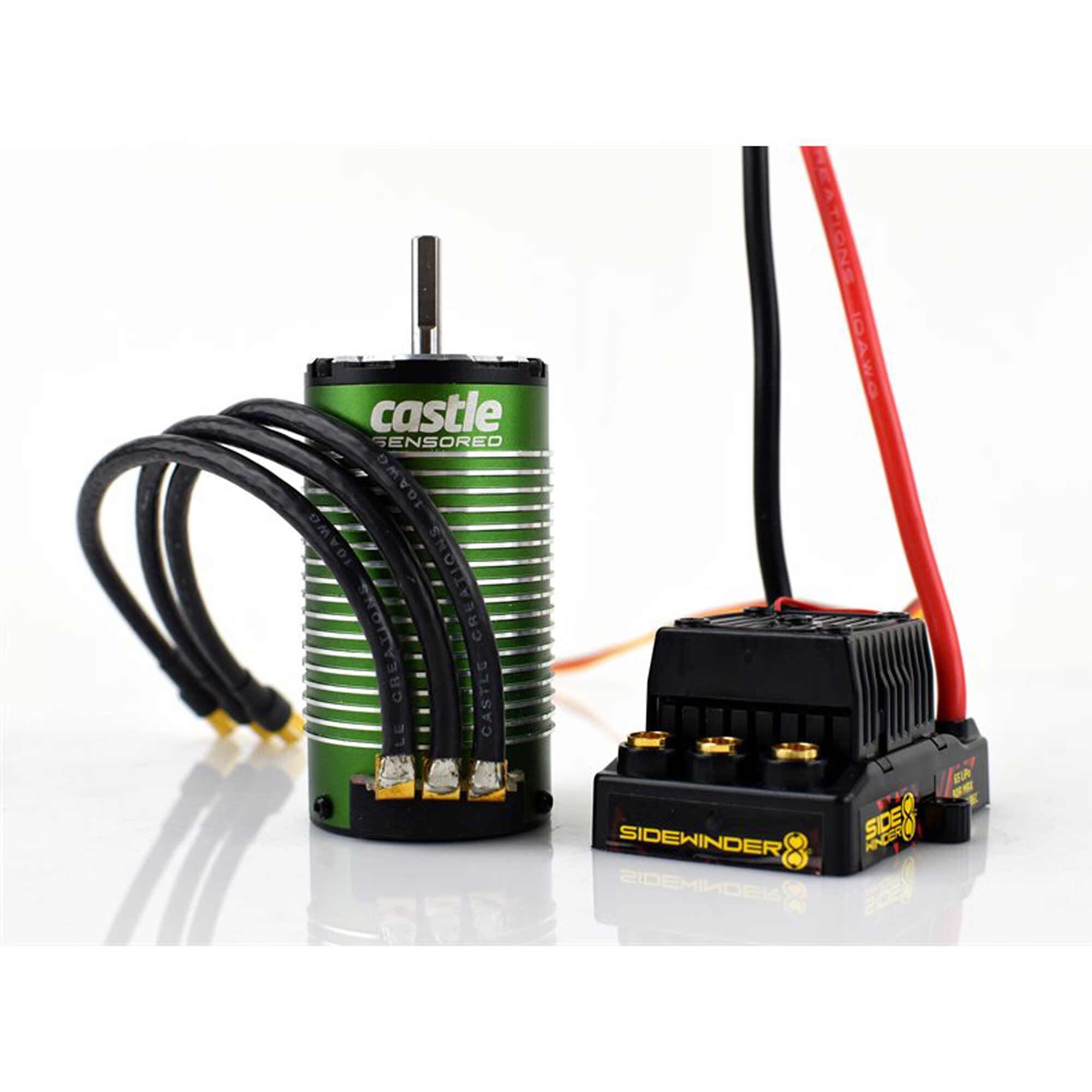

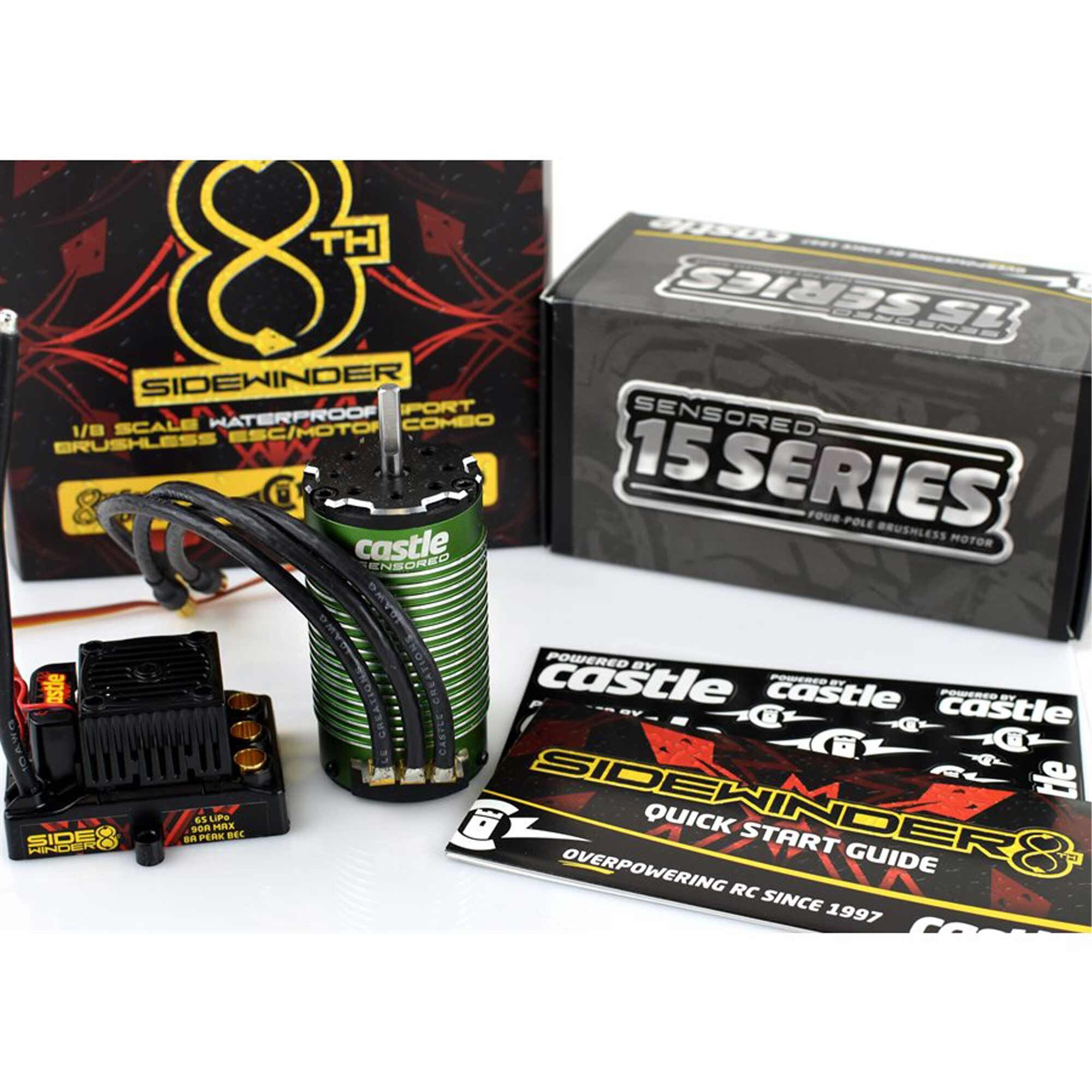

1/8 Sidewinder ESC / 2200Kv V2 Motor Combo

CSE

  • $274.95
    Unit price per

Shipping calculated at checkout.

+ -
Only 99999 left!
 More payment options









Affordable Waterproof Brushless Power System!


Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.







ESC Features






  • 2s - 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.

  • Smooth sensorless motor operation with included 1515-2200kv sensored brushless motor

  • Large 6.5mm female motor bullet connectors (male connectors sold separately)

  • Waterproof design ESC and splash resistant 30MM fan

  • Powerful 5.5 volts fixed, 8 amps Peak BEC





  • LED error codes for common error conditions

  • Convenient transmitter programming for nine common adjustable settings

  • Full compatible with the Castle Link Programming Suite to modify settings and download software updates

  • Proudly Designed, Assembled and Supported in Olathe, KS USA






1515-2200Kv V2 Features






  • Input Voltage range: 2s-6s LiPo

  • Redesigned stator and rotor resulting in improved magnetic flux.

  • Reduced magnetic cogging, producing less residual drag brake.

  • Increased efficiency, resulting in lower temperatures and longer run times.

  • Smoother start-up, reducing cogging or stuttering when starting from a stop.

  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.

  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets





  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings

  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors

  • High-Performance 0.2mm Steel Lamination Stacked Stator

  • Oversized, low-resistance, gold-plated solder tabs

  • Sensor board with High Quality Temperature-Stabilized Sensors

  • T6 Aluminum CNC Machines Front/Rear End bell

  • Proudly Designed and Supported in Kansas, USA.
